Tracks the voltage.

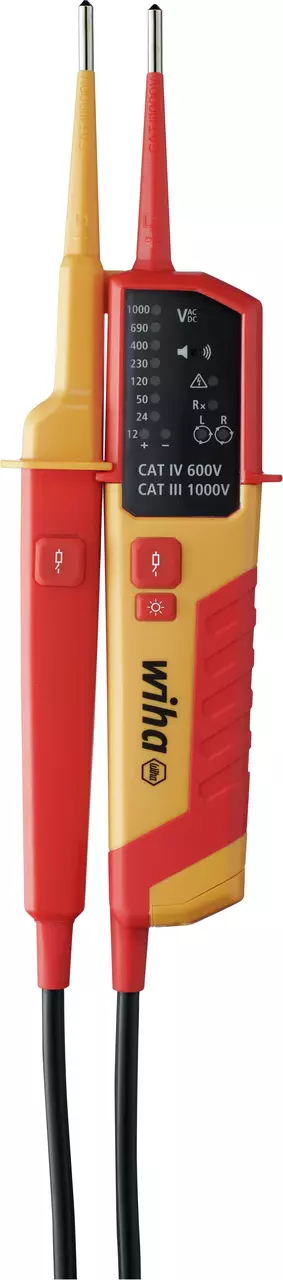

Voltage and continuity tester 12 - 1,000 V AC, CAT IV
incl. 2x AAA batteries
| Order number | 45216 |
|---|---|
| EAN | 4010995452162 |
|
2x AAA batteries |
|
12 - 1000 |
|
12 - 1500 |
|
2 |
| Remote voltage test | No |
|
No |
|
No |
|
No |
|
Yes |
|
Yes |
|
LED |
| Protection class IP | IP64 |
|
LED L, R |
|
LED and audible tone |
|
-15 - 50°C |
| Storage temperature min (°C) | |
| Height above sea level | 2000 m |
|
100 - 700 |
|
170 - 1,000 V phase to phase AC 50/60 Hz |
| Permeability test | Measuring range 0 - 500 kΩ + 50% |
|
> 50 VAC, > 120 V DC |
|
X |
|
X |
|
X |
|
X |
|
< 0.5 s at 100 % of the nominal value |
| Safety circuit (mA) | Is < 3.5 mA (at 1,000 V) |
|
30 s ON (operating time), 240 s OFF (recovery time) |
|
80 mA |
|
85 % |
|
Yes |
|
282 mm |
|
335 |
| Netto |
€
|
Battery type (IEC designation)
Voltage V AC min – max
Voltage V DC min – max
Contamination level
ATEX approval
Photovoltaic-compatible

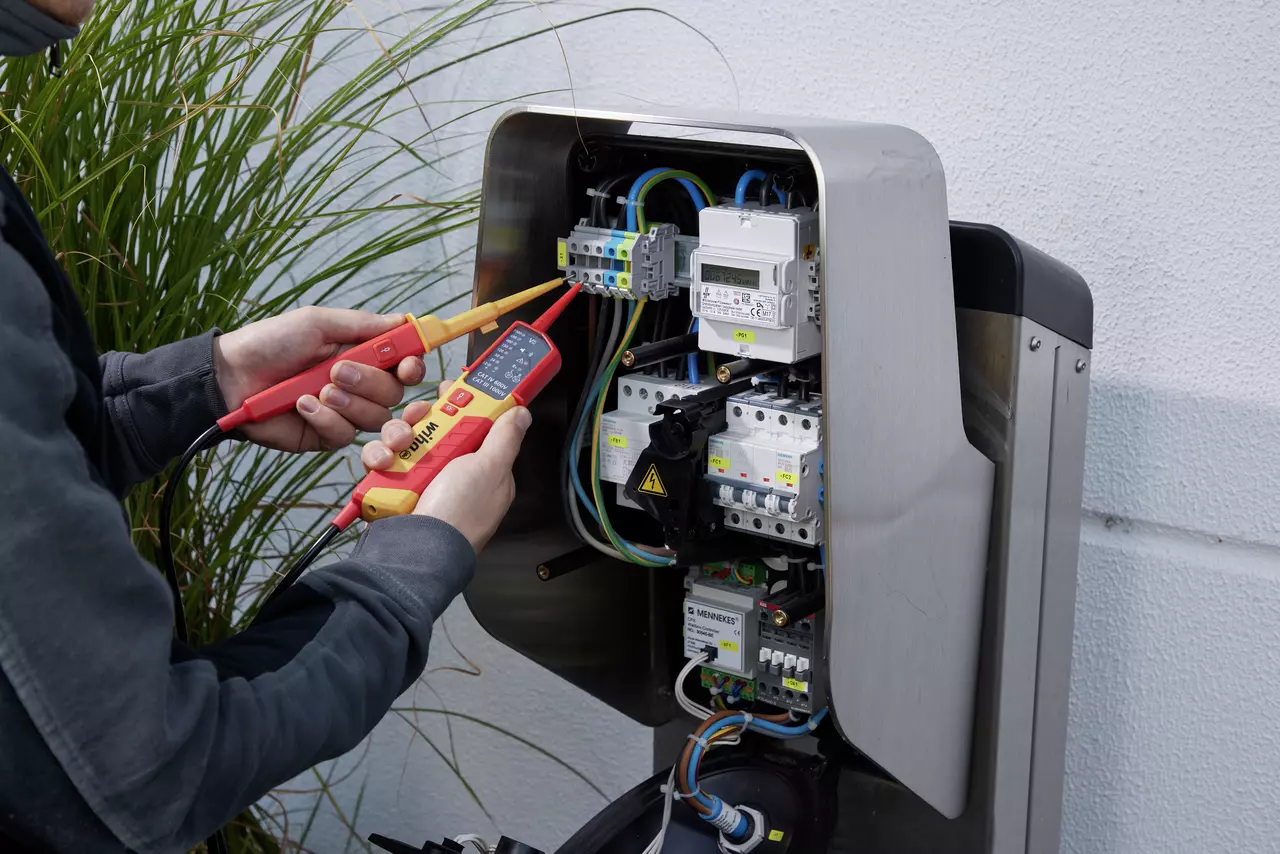

eMobility-compatible
Integrated flashlight
FI check
Display
Rotation field indication
Continuity check
Operating temperature min - max (°C)
Einpolige Phasenpruefung min - max (V AC)
Rotation field test
LED ELV display
LCD range
LCD resolution
LCD precision
LCD overflow display
Inherent time (s)
Measuring mode
Battery consumption (mA)
Humidity RH max (%)
Acoustic signal
Overall length (mm)
Weight PU in grams
Series
25515
Size specifications are always given in mm
Highlights
12 - 1,000 V AC / 1,500 V DC
CAT III 1,000 V / CAT IV 600 V
One-handed test
Rotary field measurement
FI load buttons
Voltage check despite empty battery
