Clamp meter up to 1,000 V AC, CAT IV

THE testing Multitool for electricians.

incl. 2x AAA batteries

Export PDF

Add to bookmarks

Remove from bookmarks

Order number	45219
EAN	4010995452193
	0 - 1500
	0 - 1000
	400 A DC
	400 A AC
Resistance (MΩ)	40 MΩ
	Yes
	5 MHz
True RMS	Yes
	Yes
	Yes
	Yes
	Yes
	CAT IV 1.000 V
Remote voltage test	Yes
	Yes
	Yes
	< 30 Ω
	220 mm
	100 μF
	471
Netto	€

Voltage V DC min – max

Voltage V AC min – max

Current A DC

Current A AC

Integrated flashlight

Frequency (MHz)

Background illumination

Data HOLD

Min. measurement

Max. measurement

Measuring category

with battery / rechargeable battery

AVG measurement

Continuity check

Overall length (mm)

Capacity (μF)

Weight PU in grams

Series 25550

Size specifications are always given in mm

Highlights

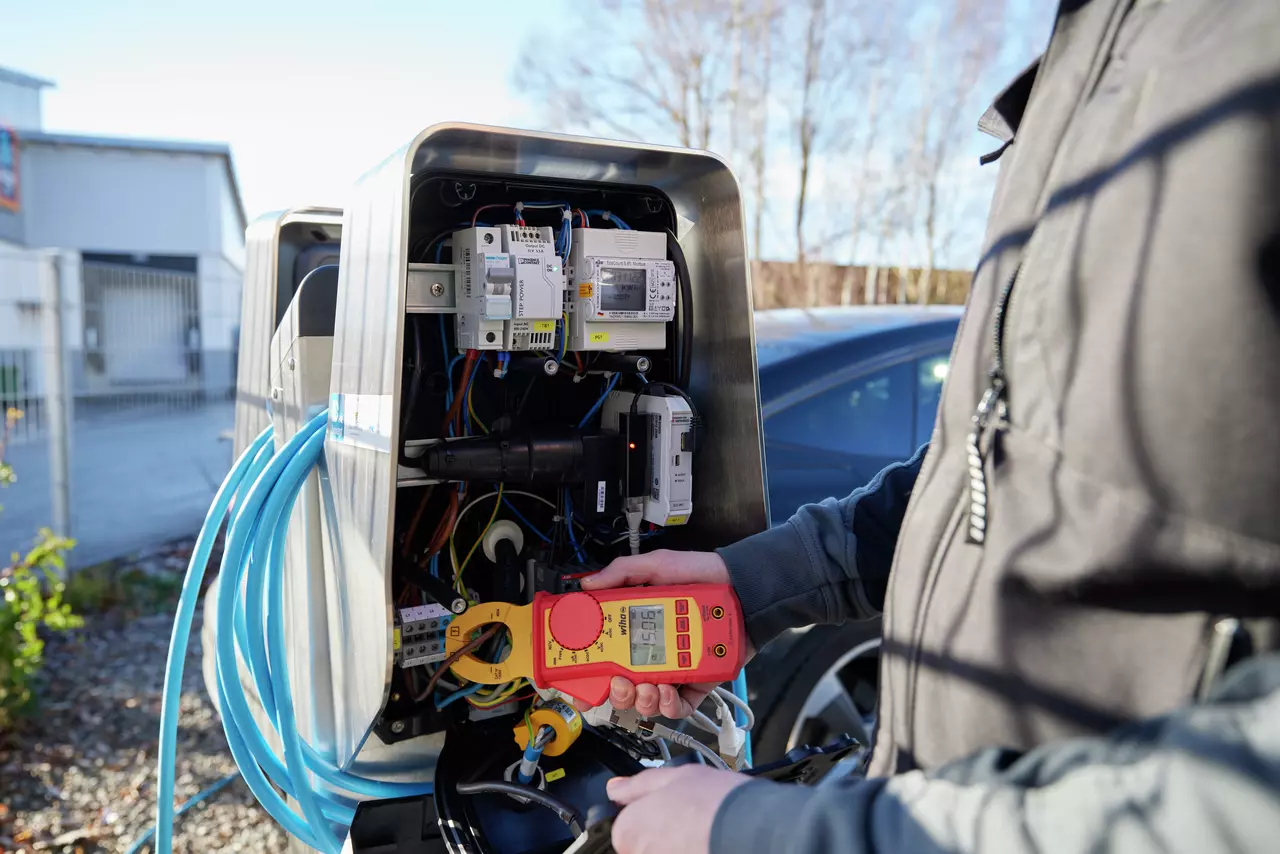

Suitable for eMobility

Suitable for photovoltaic systems

1,000 V AC / 1,500 V DC, 400 Amp

Cat IV, 1,000 V

Safe measuring without direct contact

Without electrical circuit interruption

Product Description

Product description

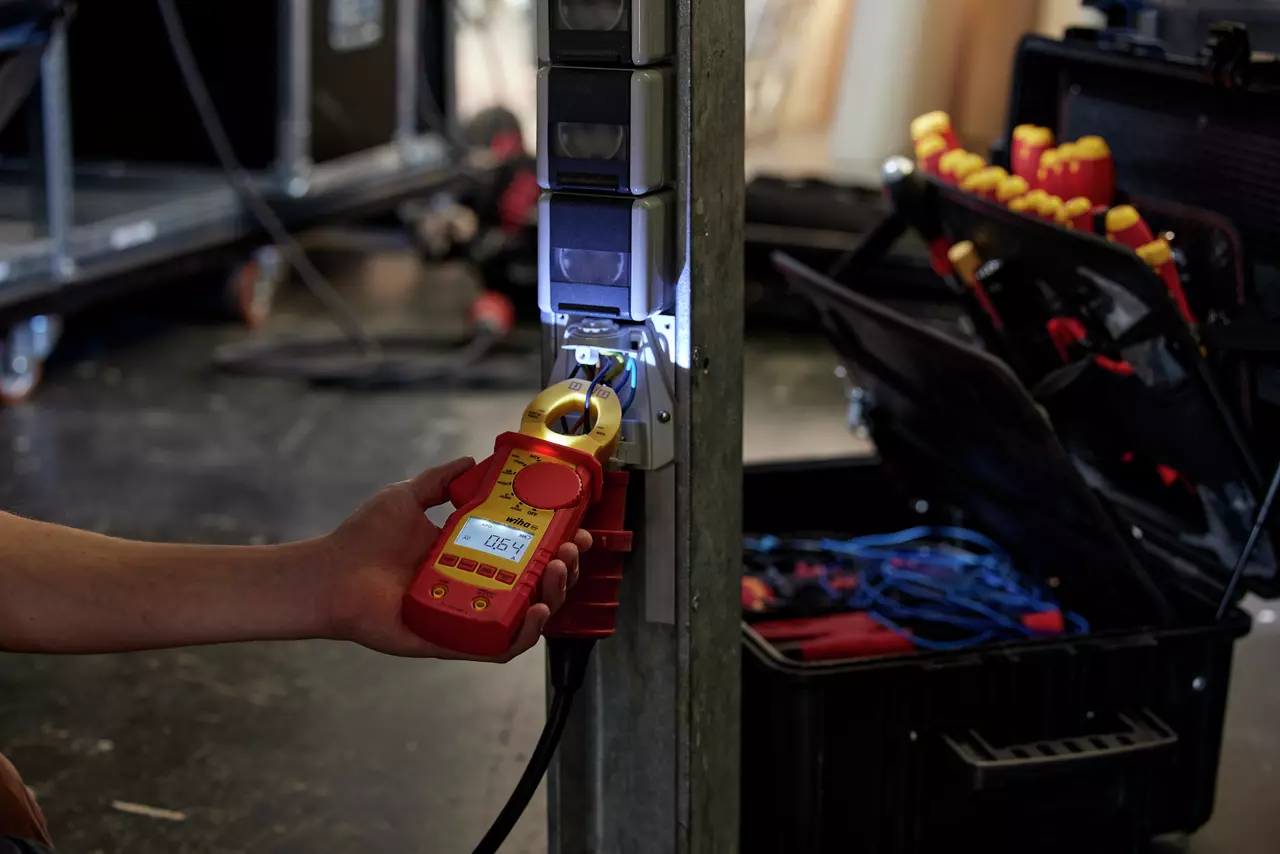

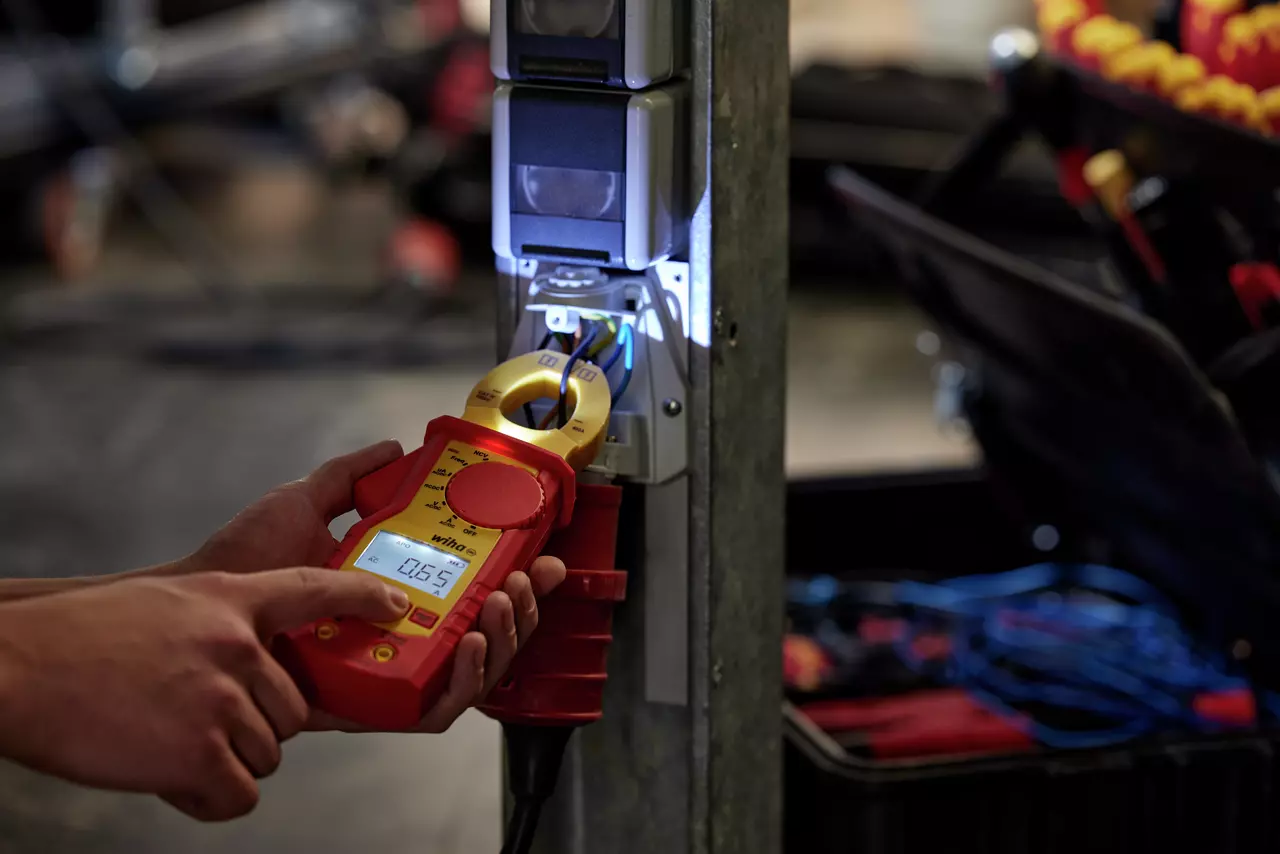

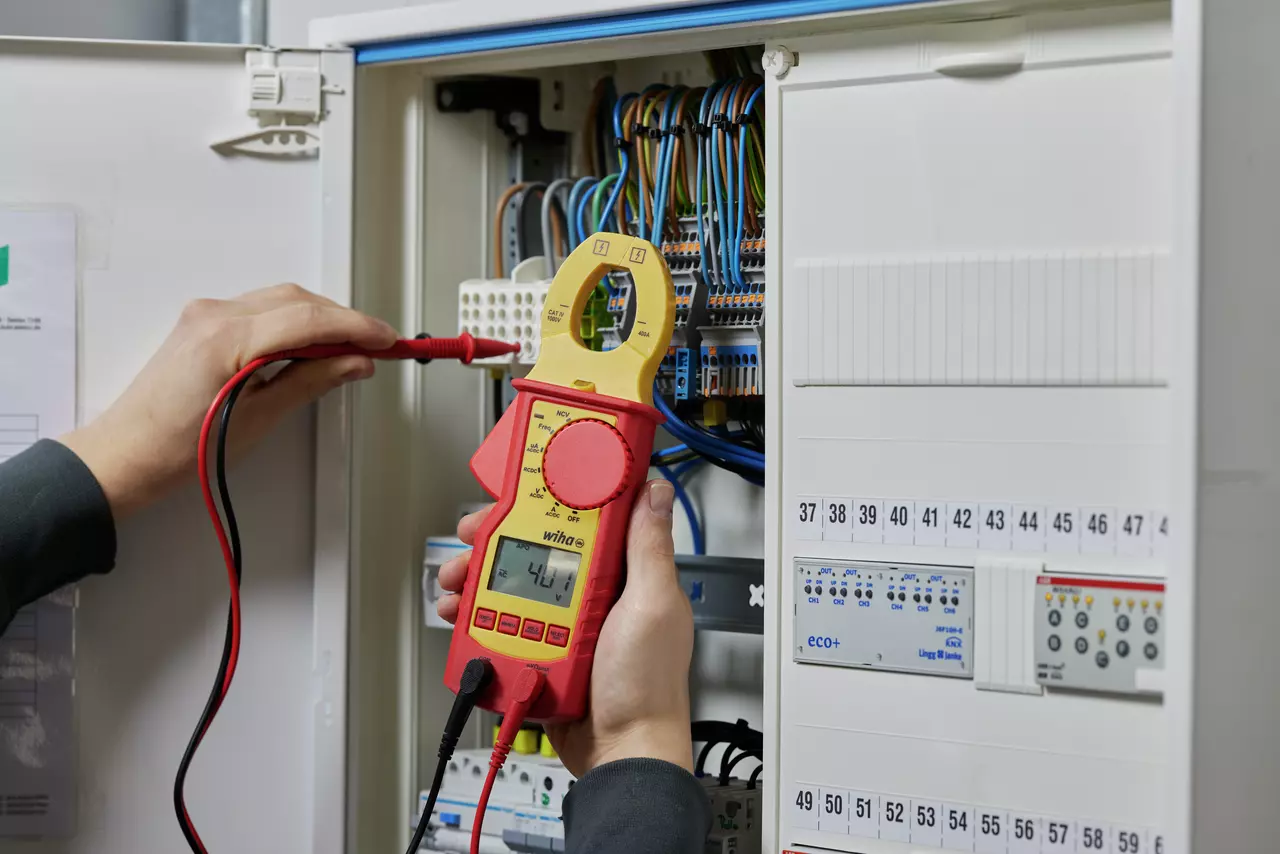

When working, for example, on electrical systems that cannot be switched off, current measurement is a major challenge. With the measuring caliper from Wiha, the caliper bracket can be used to carry out measurements without interrupting the electrical circuit. Handling is greatly facilitated by the remote single-hand testing. The test tips allow additional tests, voltage measurement in the AC and DC range, as well as resistance, frequency, and capacity measurements. They also allow continuity and diode tests. This multi-functionality significantly increases the efficiency. A large LCD display with background illumination and data hold function makes the measurement results immediately readable even beyond the measurement process. An additional signal sound indicates the current flow during the continuity check. In addition, the measuring caliper from Wiha has an integrated flashlight function, providing optimal illumination conditions even in poorly lit work environments. The LPF function, coupled with the True-RMS function increase the process safety of your test by providing interference-free effective values. According to the measurement category CAT IV up to 1,000 V the measuring caliper offers maximum safety for working directly on the sources of low-voltage installations.

Product dimensions

280 x 110 x 50 mm (LxWxD)

Standards

IEC/EN 61010-1, IP40

Application

For multi-functional use in different application locations.

Measuring category

CAT IV 1.000 V

Available Downloads

BA_SB25551_Clamp_meter_1000_V-AC_CAT-IV_225x105mm_45219_INT_online.pdf
