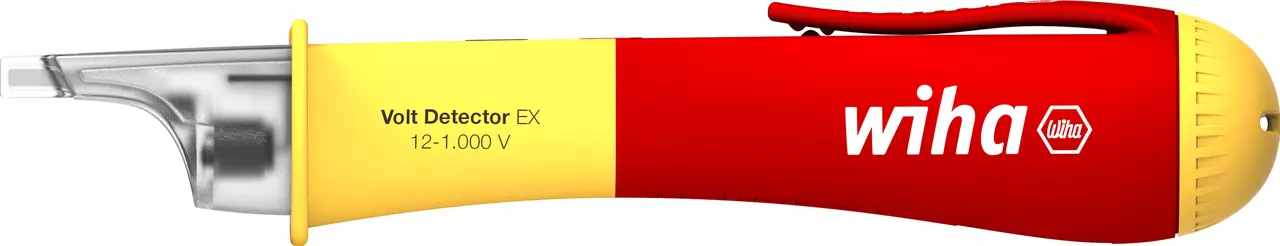

Single-pole, non-contact voltage tester volt detector, explosion protected 12-1,000 V AC

Tracks the voltage.

incl. 2x AAA batteries

Export PDF

Add to bookmarks

Remove from bookmarks

Order number	44309
EAN	4010995443092
	12 - 1000
	150 mm
	2x AAA batteries
	28.5 mm
Remote voltage test	Yes
	Yes
	Yes
	CAT IV 1.000 V
Protection class IP	IP67
	-20 - 40°C
	Yes
	100
Netto	€

Voltage V AC min – max

Overall length (mm)

Battery type (IEC designation)

Handle diameter (mm)

ATEX approval

Integrated flashlight

Measuring category

Operating temperature min - max (°C)

Acoustic signal

Weight PU in grams

Series 25513

Size specifications are always given in mm

Highlights

Voltage 12 - 1,000 V AC

CAT IV, 1,000 V, ATEX certified

One-handed test

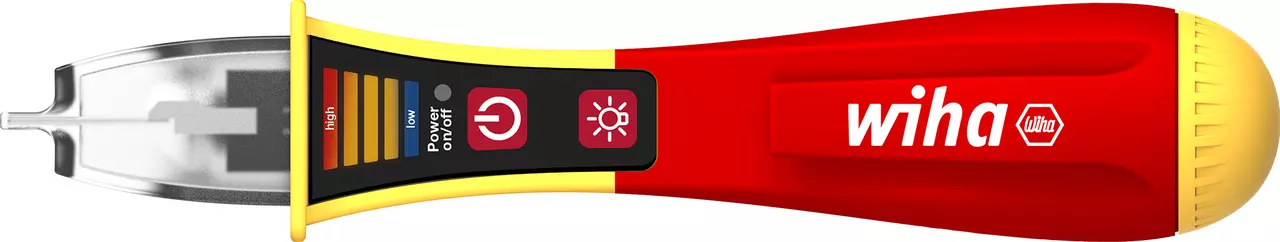

5-level optical signal

Integrated flashlight function

Product Description

Product description

Prior to the start of electrical installations, electricians must ensure that the work environment is voltage free. A voltage tester is needed for testing alternating electrical fields or detecting potential error sources. Thanks to its optical and acoustic signal, the non-contact Wiha voltage tester indicates whether or not there is any voltage. After switching on, the permanently green illuminated LED indicates readiness. During the voltage test, depending on the strength of the electrical alternating field, the LEDs are illuminated from blue (weak), 'to' orange, to red (strong). Two AAA batteries are required for use, which are included in the scope of delivery. If the device is not in use for 4 minutes, it switches off automatically to save energy. An integrated LED flashlight allows illumination of the measurement site in the dark and can also be used as a flashlight by manually switching it on and off. Thanks to its convenient size the voltage tester with push-on clip fits comfortably in any shirt or pant pocket. With its internationally adjustable measuring tip, the voltage tester is suitable for all outlet variations around the world. The single-pole voltage tester complies with the EN 61010-1 / IEC 61326 standard and is compatible with CAT IV 1,000 VAC. Furthermore,the tool is approved according to the ATEX standard for use in explosive areas (category II). The device should be tested on a known voltage source before and after use to ensure its functionality.

Product dimensions

240 x 29 x 49 mm (LxWxD)

Standards

IEC/EN 61010-1, IEC/EN 61326, IP67

Application

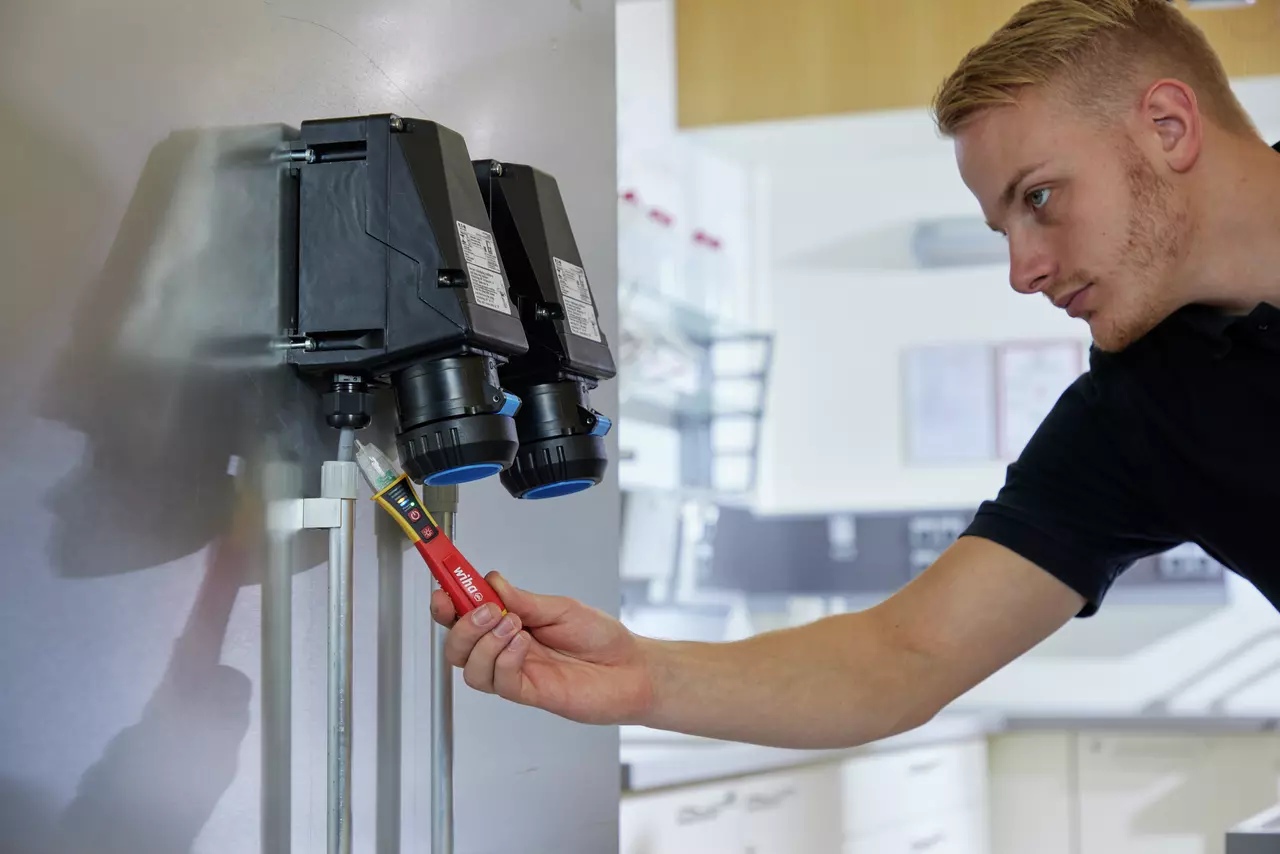

For the detection and localization of live conductors, cable interruptions and cable breaks, blown fuses, defective lamps on light strings, as well as detection of individual wires.

Measuring category

CAT IV 1,000 V

Available Downloads

BA_SB2551301_Voltage-tester_VoltDetectorEX_online_INT.pdf
